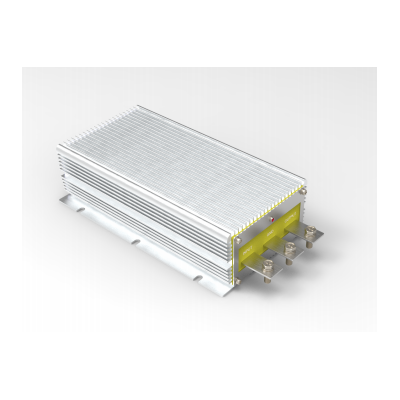

48V to 24V 60A 1440W DC-DC Converter, Non-Isolated
Features
Input voltage range 30V to 60V
Stable output voltage 24V
Maximum output current 60A
100 % burn-in test
Efficiency up to 95 %
IP 65 Waterproof ( excluding terminals, LED lights ) , internal glue sealing, anti-vibration, dust-proof
Self-cooling, easy installation
2 years warranty
Over current protection: when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.
Over temperature protection: When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.
Low voltage protection: When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
Reference standards : EN 61000-6-3 : 2007/ A 1 : 2011/ AC : 2012 EN 55014-1 : 2006/ A 2 : 2011 EN 60950-1 : 2006/ AC : 2011
Wiring Definition
OUTPUT + : Load positive
GND : battery negative / load negative
INPUT + : battery positive
Product Number |
PFDF60-48S24 |
Efficiency |
up to 95% |
Input Voltage |
30-60V DC |
Output Voltage |
24V DC |
Maximum Output Current |
60A |
Ripple | 300mVp(measured by 20M oscilloscope) |
Line Regulation |
± 1 % |
Load Regulation |
± 1 % |
Voltage Accuracy |
± 2 % |
Waterproof Level | IP65 (except output ports and indicator light) |
Dimension | 220*127* 63mm |
Net Weight |
2.5kg |
Operating Temperature |
-40 ~ 55 ° C |
Warranty |
2year |
Above specifications are tested under the room temperature 25 ℃ ( derating is required for high temperature above 50 °C ).
