150-400W 5V 12V 24V 48V Isolated DC DC Converter
Features
Π type input filter
High output current and power
Design for high reliability, long lifetime
Wide range of power, easy to upgrade
Easy installation
Full load efficiency up to 90%
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
Input Characteristic
Voltage range
12VDC (Normal Rated Value): 9 ~ 18 VDC
18VDC (Normal Rated Value): 9 ~ 36 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
600VDC (Normal Rated Value): 400 ~ 800 VDC
Output Characteristic
Voltage set-point accuracy ……………… ±2%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% （Typ）
Output current …………………………………5-40A for optional
Output voltage …………………………………5-48V
Power ……………………………………………100-350W
General Characteristic
Switching frequency …………………… 100-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃
Protection features
Input undervoltage protection Output overcurrent protection
Input overvoltage protection Output short circuit protection
Over temperature protection
Models
Input V. (Vdc) | Input V. range (vdc) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) | Models | |
SING | 12 | 9-18 | 12 | 16.67 | 120 | 87% | PDB200-12S12-E |

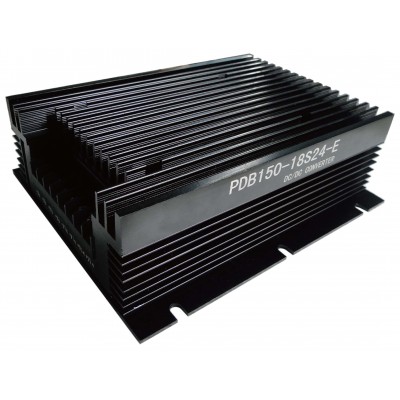

18 | 9-36 | 24 | 6.25 | 200 | 86% | PDB150-18S24-E | |
12 | 9-18 | 24 | 12.5 | 200 | 86% | PDB300-12S24-E | |
24 | 18-36 | 12 | 33.3 | 120 | 88% | PDB400-24S12-E | |
24 | 18-36 | 110 | 3 | 600 | 88% | PDB330-24S110-E | |
110 | 66-154 | 12 | 33.3 | 120 | 88% | PDB400-110S12-E | |
110 | 66-154 | 24 | 16.7 | 200 | 89% | PDB400-110S24-E | |
110 | 66-154 | 48 | 8.3 | 300 | 90% | PDB400-110S48-E | |
600 | 400-800 | 24 | 12.5 | 200 | 90% | PDB300-600S24-E | |
Remark: 1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.
2) Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.
Mechanical Drawing & Pin definition
