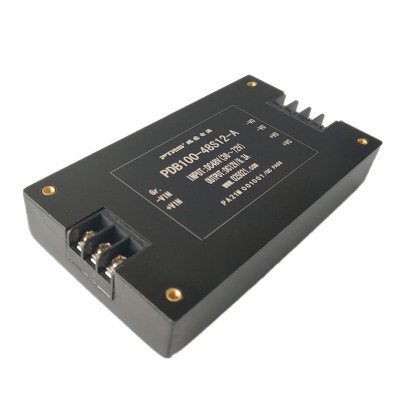

Features

l Π type input filter

l High power density

l 2X, 4X voltage input

l Design for high reliability, long lifetime

l Easy installation, dual side pin out

l Attractive outline design

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

Input Characteristic

Voltage range

l12VDC (Normal Rated Value): 9 ~ 18 VDC

l24VDC (Normal Rated Value): 18 ~ 36 VDC

l48VDC (Normal Rated Value): 36 ~ 72 VDC

l110VDC (Normal Rated Value): 66 ~ 154 VDC

l18VDC (Normal Rated Value): 9 ~ 36 VDC (4 times input)

Output Characteristic

lVoltage set-point accuracy ……………… ±2%

lLine Regulation (Main) ……….........……… ±0.5%

lLoad regulation (Main) ………........…..........±0.5%

lOutput Current Limited ................................. 120% （Typ）

lOutput current …………………………………2-10A for optional

lOutput voltage …………………………………5-48V

lPower ……………………………………………30-100W

General Characteristic

lSwitching frequency …………………… 100-200 KHz

lIsolation resistance ……………………  200 MΩ

lIsolation voltage

Input-output: >1500 VDC

Input-case: >1050 VDC

Output-case: >500 VDC

lEnvironmental Characteristic

Substrate Working Temperature ………Industry: -25-+85℃

                                                             Military I: -40-+85℃

                                                             Military II: -55-+85℃

Storage temperature …………………… Industry: -45~ +105℃

                                                          Military: -55-+105℃

Protection features

Input undervoltage protection         Output overcurrent protection

Input overvoltage protection          Output short circuit protection

Over temperature protection

Models

Remark: 1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.

2) Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

Mechanical Drawing & Pin definition
