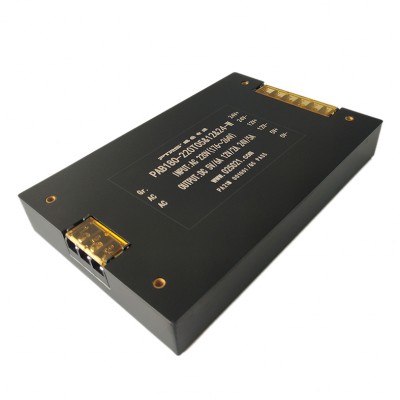

Features

Wide range of input voltage

Broadband noise filter of input

Surge suppress circuit of input

Comply with UL 1950, IEC950 safety regulation

Attractive outline design

Terminal connection method

Fast dynamic response

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

Input Characteristic

Voltage range

220VAC (Normal Rated Value): 100 ~ 240 VAC     176 ~ 264 VAC

Output Characteristic

Voltage set-point accuracy ……………… ±2%

Line Regulation (Main) ……….........……… ±0.5%

Load regulation (Main) ………........…..........±0.5%

Output Current Limited ................................. 120% （Typ）

Output current …………………………………3-60A for optional

Output voltage …………………………………5-48V

Power ……………………………………………200-300W

General Characteristic

Switching frequency …………………… 100-200 KHz

Isolation resistance ……………………  200 MΩ

Isolation voltage

Input-output: >1500 VAC/MIN (Leakage current ＜5mA)

Input-case: >1500 VAC/MIN (Leakage current ＜5mA)

Output-case: >500 VDC/MIN

Main-Viice: >500 VDC/MIN

Environmental Characteristic

Substrate Working Temperature ………Industry: -25-+85℃

Military I: -40-+85℃

Military II: -55-+85℃

Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃

Protection features

Input undervoltage protection         Output overcurrent protection

Output short circuit protection         Over temperature protection

Models

Remark: 1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.

2) Only typical models listed. If you need other models, please advise the input voltage, output voltage and power.

Mechanical Drawing & Pin definition
